POE Midspan splitter
Anja Wang
Contact person
Basic Information
| Place of Origin | China (Mainland) |
|---|---|
| Brand Name | FUJIAAN |
| Model Number | FUJA-MIDSPAN-4X2PORT |
| Input Voltage | 220V |
| Output Voltage | DC48V |
| Output Frequency | 50-60HZ |
| Output Current | 1.5A |
| Output Power | 51 - 100W |
| Output Type | Single |

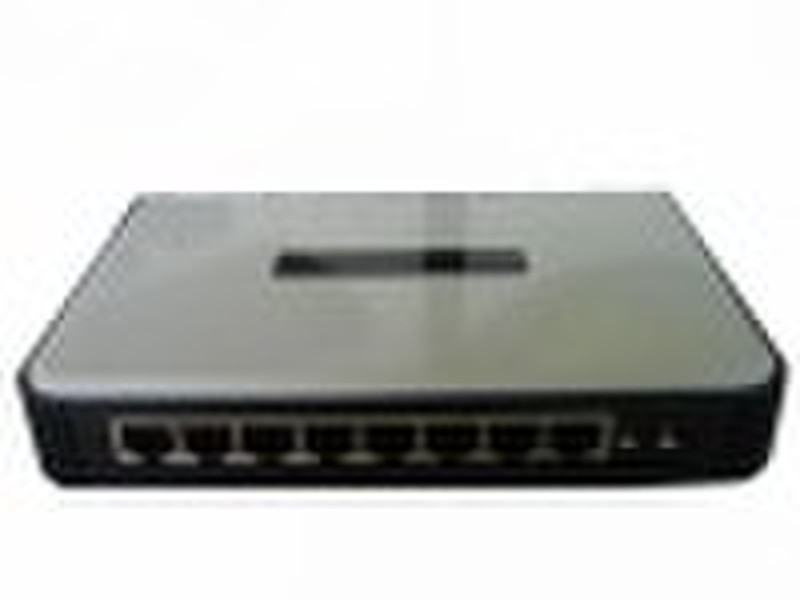

FUJA-MIDSPAN-4X2PORT is a 4-port network powered midspan. It has 8 RJ45 ports. And its 4 ports in left can connect to uplink equipment, such as other switch or net equipments. Its 4 ports in right can work as the power output port. It also has 2 power ports, easy to extend to 8 ports ,12 ports and 16 ports midspan. Technical SpecificationStandards IEEE802.3 10BASE-T for Ethernet IEEE802.3u 100BASE-TX for fast Etherne IEEE802.3af POE POE Protocol CSMA/CD Ethernet Data Transmit Rate Ethernet10Mbpshalf-duplex20MbpsduplexFast Ethernet100Mbpshalf-duplex200Mbpsduplex Topology Structure Star topology Physical Medium 10BASE-TCAT3,4,5 UTPmax. length 100mEIA/TIA-568 100ohm STPmax. length 100m100BASE-TXCAT 5 or up UTPmax. length 100mEIA/TIA-568 100ohm STPmax length 100m The number of Port 8 ports (4ports inleft arefor up link equipments, 4 ports in right are POE ports as power transfer UP LINK Any port in left LED Display Power ,PSE power Physical EnvironmentInput AC AdapterAC100-240V 50-60HZ,DC48V/1.5A Power No Load :2.8WMAX Full Load:72W Operating Temperature -2070 Storage Temperature -40 70 Humidity 5%95% unfrozen Dimensions 183*120*34mm Net Weight 0.29kg
Delivery terms and packaging
Packaging Detail: 183*120*34mm0.29kg Delivery Detail: 14 working days
Payment term
Telegraphic transfer
