| Place of Origin |
China (Mainland) |
| Brand Name |
FUJIAAN |
| Model Number |
FUJA-PSE-1PORT |
| Input Voltage |
220V |
| Output Voltage |
DC48V |
| Output Frequency |
50-60HZ |
| Output Current |
0.8A |
| Output Power |
51 - 100W |
| Output Type |
Single |

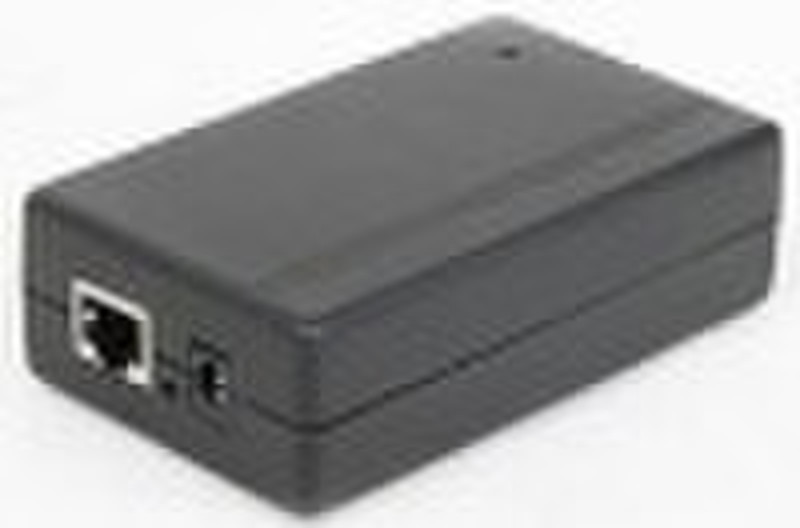

FUJA-PSE-1PORT is a single port Ethernet power-sourcing equipment (PSE) .It has an Ethernet data port, a 48V power input port and a combined data-power output port. This equipment provides an IEEE802.3af POE power supply solution to one channel Ethernet equipment such as a routers, switches, wireless APs, network telephones, industrial network terminals or IP cameras. It can supply power to these appliances without separate power cables, improve the system reliability and simplify the installation. Technical Specification StandardIEEE802.3af POEData Transmission RateEthernet10Mbpshalf-duplex20MbpsduplexFast Ethernet100Mbpshalf-duplex200MbpsduplexPhysical Medium10BASE-TCAT3,4,5 UTPmax. length 100m EIA/TIA-568 100Ohm STPmax. length100m100BASE-TXCAT 5 or up UTPmax. length100mEIA/TIA-568 100Ohm STPmax. length100mPorts1 port Pin DefinitionPin 1, 2, 3 and 6 for dataPin 4 and 5 for anodePin 7 and 8 for cathodeLED DisplayInput power (red)Output power (green)Physical EnvironmentInputAC Adapter100V-240V AC,50HZ-60HZ,DC48V/0.5AOperating Temperature-2070Storage Temperature-4070Humidity5%95% unfrozenDimensions104mm*63mm*31mm
