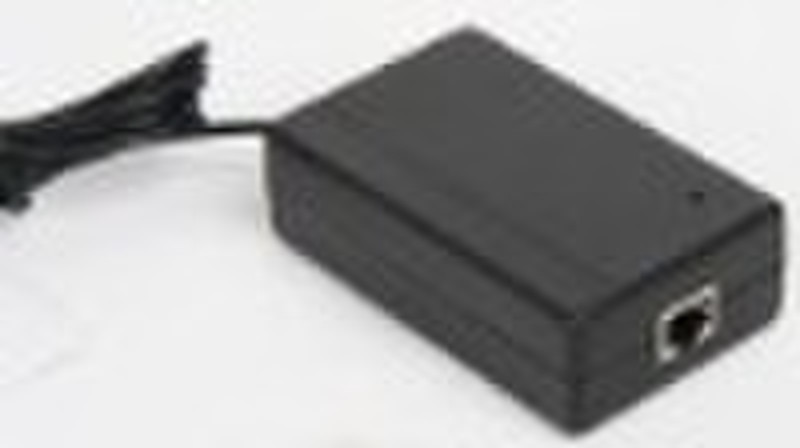

POE Adapter FUJA-PD-5V
Anja Wang
Contact person
Basic Information
| Input Voltage | 220V |
|---|---|
| Output Voltage | DC5V/12V |
| Output Frequency | 50-60HZ |
| Output Current | 2A |
| Place of Origin | China (Mainland) |
| Brand Name | FUJIAAN |
| Model Number | FUJA-PD-5V |
| Output Type | Single |
| Output Power | 1 - 50W |
FUJA-PD-5V/2A is a POE powered device (PD). It is used for the equipment whose data cable and power cable are separated. This PD can intelligently study the equipments power requirement per CPU and automatically adjust the power supply to the equipment. This device can provide DC 5V, 2A power to routers, switches, wireless APs, network telephones, industrial network terminals and IP cameras.Technical SpecificationStandardIEEE802.3af POE Ethernet power supplyData Transmit RateEthernet10Mbpshalf-duplex20MbpsduplexFast Ethernet100Mbpshalf-duplex200MbpsduplexPhysical Medium10BASE-TCAT3,4,5 UTPmax. length 100m EIA/TIA-568 100ohm STPmax. length100m100BASE-TXCAT 5 or up UTPmax. length100mEIA/TIA-568 100ohm STPmax length100mLED DisplayInput power (red)Output power (green)PIN DefinitionPin 1,2 ,3 and 6 for dataPin 4 and 5 for anodePin 7 and 8 for cathode.Physical EnvironmentOutputDC 5V , 2A (inside is anode, outside is cathode )Operating Temperature-20∼70Storage Temperature-40∼70Humidity5%∼95% unfrozenDimensions104mm*63mm*31mm
Delivery terms and packaging
Packaging Detail: 104mm*63mm*31mm Delivery Detail: 14 working days
