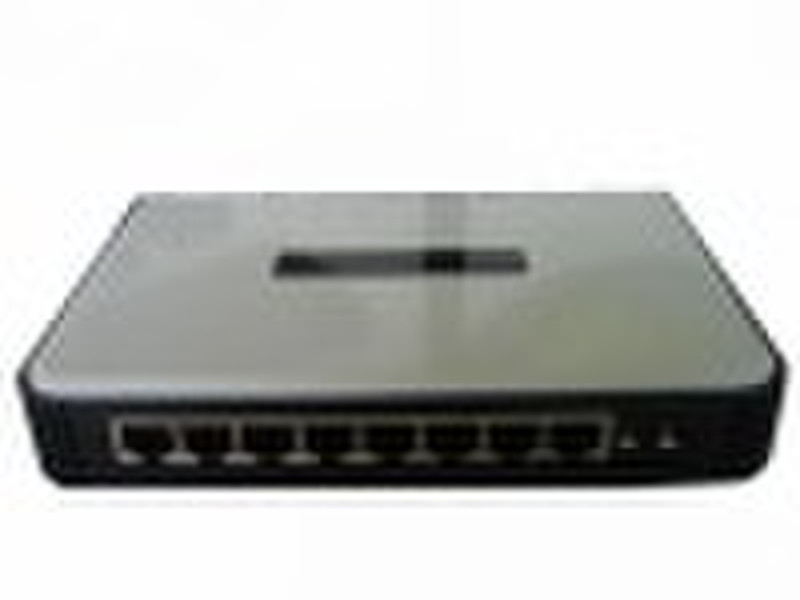

High Power POE Midspan

FUJA-MIDSPAN-P35-4X2PORT is a 4-port network powered midspan. It has 8 RJ45 ports, each port can offer Max. 35W power. And its 4 ports in left can connect to uplink equipment, such as other switch or net equipments. Its 4 ports in right can work as the power output port. Inside of circuit, each port in right is connected to the fixed port in left. It also has 2 powerports, easy to extend to 8 ports ,12 ports and 16 ports midspan. StandardsIEEE802.3 10BASE-T for EthernetIEEE802.3u 100BASE-TX for fast EtherneIEEE802.3at POE POEProtocolCSMA/CD EthernetData Transmit RateEthernet:10Mbps（half-duplex）20Mbps（duplex）Fast Ethernet:100Mbps（half-duplex）200Mbps（duplex）Topology StructureStar topologyPhysical Medium10BASE-T:CAT3,4,5 UTP（max. length 100m ）EIA/TIA-568 100ohm STP（max. length 100m）100BASE-TX:CAT 5 or up UTP（max. length 100m）EIA/TIA-568 100ohm STP（max length 100m）The number of Port8 ports (4ports in left are for up link equipments, 4 ports in right are POE ports as power transfer）UP LINKAny port in leftLED DisplayPower ,PSE powerInputAC Adapter（AC100-240V ～50-60HZ,DC48V/3A）PowerNo Load :2.8W（MAX）Full Load:140W
